PRODUCT DESCRIPTION
When it comes to modern industrial machinery, the rotary screw compressor is one of the most widely used technologies. Renowned for their reliability and versatility, screw compressors are the workhorse behind many industrial processes and applications. rotary screw air compressors are known for their reliability, low maintenance requirements, and small footprint. This durable technology is suited to an array of demanding industry tasks, without which, businesses around the world would encounter operational challenges and efficiency problems.
PRODUCT OVERVIEW

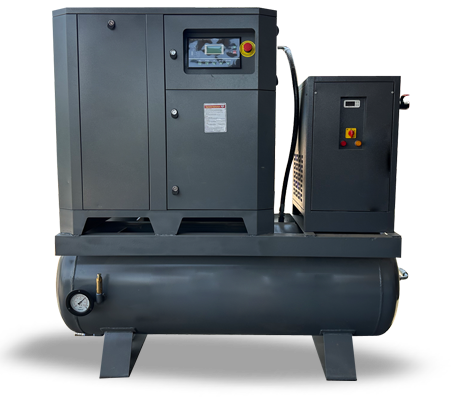

ROTARY SCREW AIR COMPRESSOR MODEL VA 50D

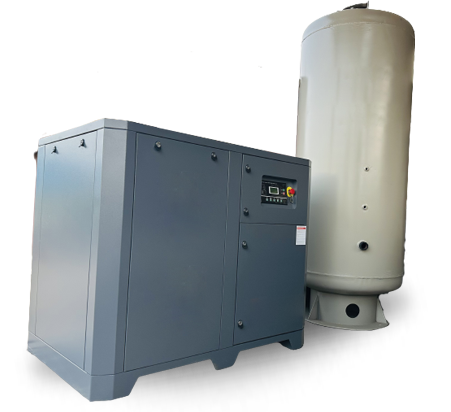

ROTARY SCREW AIR COMPRESSOR MODEL VA 50D

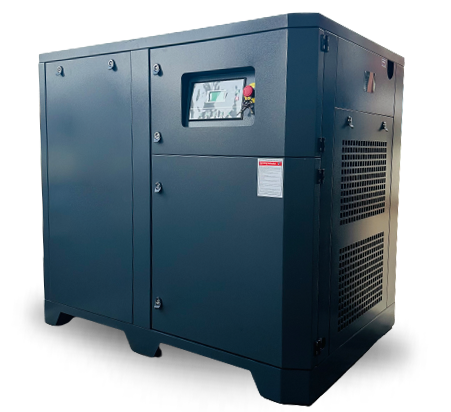

ROTARY SCREW AIR COMPRESSOR MODEL VA 50D

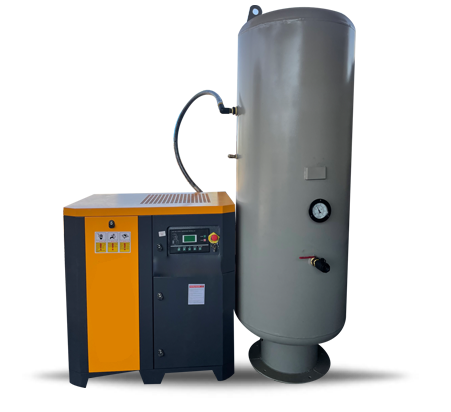

ROTARY SCREW AIR COMPRESSOR MODEL VA 20D

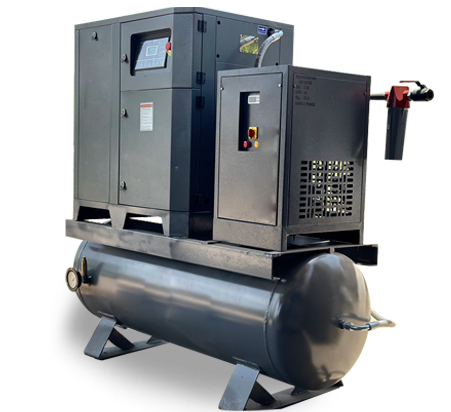

ROTARY SCREW AIR COMPRESSOR MODEL VA 15D
ROTARY SCREW AIR COMPRESSOR MODEL VA 15D
TECHNICAL SPECIFICATION
| Model | Power (KW) |
RPM |
Free Air Delivery | Noise (db) |
Machine Dimension (L*W*H)mm |
Weight (KG) |
Air outlet Inch / mm |
|
|---|---|---|---|---|---|---|---|---|
| CFM | (m³/mim)/Mpa | |||||||
| VA-10D | 7.50 | 2900 | 45.92 38.85 33.55 30.37 |
1.30/0.7 1.10/0.8 0.95/1.0 0.86/1.3 |
62±2 | 890*630*920 | 240 | G3/4" |
| VA-15D | 11 | 2900 | 65.34 57.21 49.44 46.26 |
1.85/0.7 1.62/0.8 1.40/1.0 1.31/1.3 |
62±2 | 940*705*1120 | 300 | G1" |
| VA-20D | 15 | 2900 | 91.83 88.30 77.70 56.86 |
2.60/0.7 2.50/0.8 2.20/1.0 1.61/1.3 |
62±2 | 940*705*1120 | 350 | G1" |
| VA-25D | 18.50 | 2900 | 113.02 109.49 92.53 74.17 |
3.20//0.7 3.10/0.8 2.62/1.0 2.10/1.3 |
63±2 | 1055*775*1230 | 420 | G1 1/4" |
| VA-30D | 22 | 2900 | 134.21 127.15 113.02 98.90 |
3.80.7 3.60/0.8 3.20/1.0 2.80/1.3 |
63±2 | 1300*785*1185 | 550 | G1 1/4" |
| VA-40D | 30 | 2900 | 183.66 176.67 158.94 134.21 |
5.20/0.7 5.00/0.8 4.50/1.0 3.80/1.3 |
63±2 | 1115*800*1250 | 510 | G1 1/4" |
| VA-50D | 37 | 2900 | 240.17 218.98 197.79 173.06 |
6.80/0.7 6.20/0.8 5.60/1.0 4.90/1.3 |
63±2 | 1570*895*1295 | 950 | G1 1/2" |
| VA-60D | 45 | 2900 | 282.56 271.96 247.24 204.85 |
8.00/0.7 7.70/0.8 7.00/1.0 5.80/1.3 |
68±2 | 1620*940*1355 | 1110 | G1 1/2"" |
| VA-75D | 55 | 2900 | 381.45 356.73 317.88 300.22 |
10.80/0.7 10.10/0.8 9.00/1.0 8.50/1.3 |
68±2 | 2045*1250*1705 | 1750 | G2" |
| VA-100D | 75 | 2900 | 480.35 469.75 409.71 353.20 |
13.60/0.7 13.30/0.8 11.60/1.0 10.00/1.3 |
68±2 | 2045*1250*1705 | 1820 | G2" |
| VA-120D | 90 | 2900 | 582.78 547.46 515.67 434.43 |
16.50/0.7 15.50/0.8 14.60/1.2 12.30/1.3 |
68±2 | 2340*1480*1820 | 2100 | DN50 |
| VA-150D | 110 | 2900 | 759.38 724.06 618.10 572.18 |
21.50/0.7 20.50/0.8 17.50/1.0 16.20/1.3 |
68±2 | 2568*1620*1985 | 2800 | DN65 |
| VA-75D | 132 | 2900 | 925.38 883.00 777.04 724.06 |
26.20/0.7 25.00/0.8 22.00/1.0 20.50/1.3 |
72±2 | 2568*1620*1985 | 3000 | DN65 |
| VA-200D | 160 | 2900 | 1013.68 974.83 868.87 759.38 |
28.70/0.7 27.60/0.8 24.60/1.0 21.50/1.3 |
72±2 | 2720*1750*2125 | 3300 | DN65 |
