PRODUCT DISCRIPTION

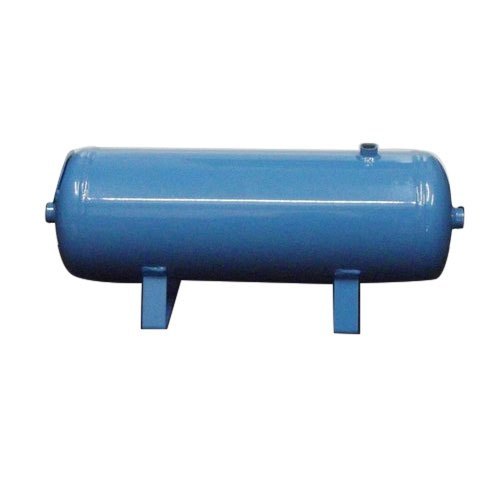

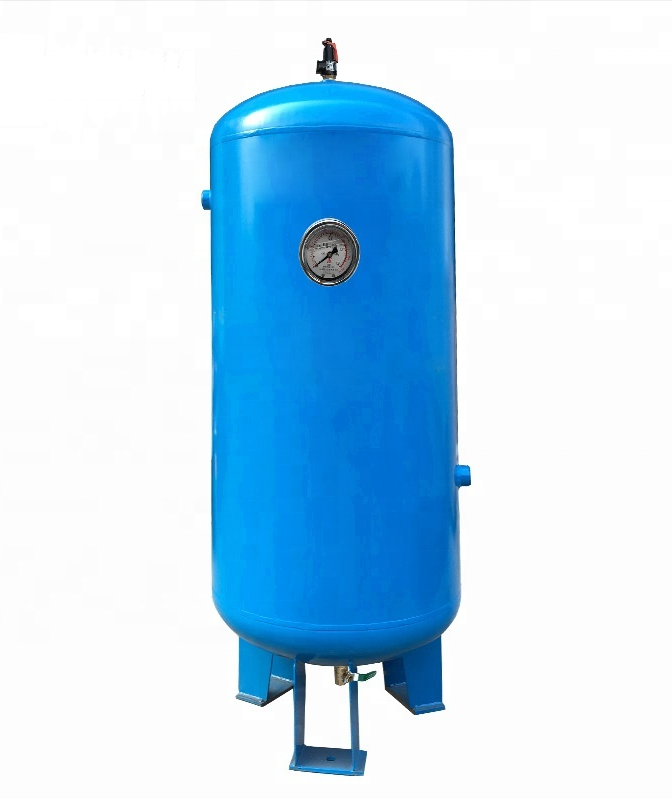

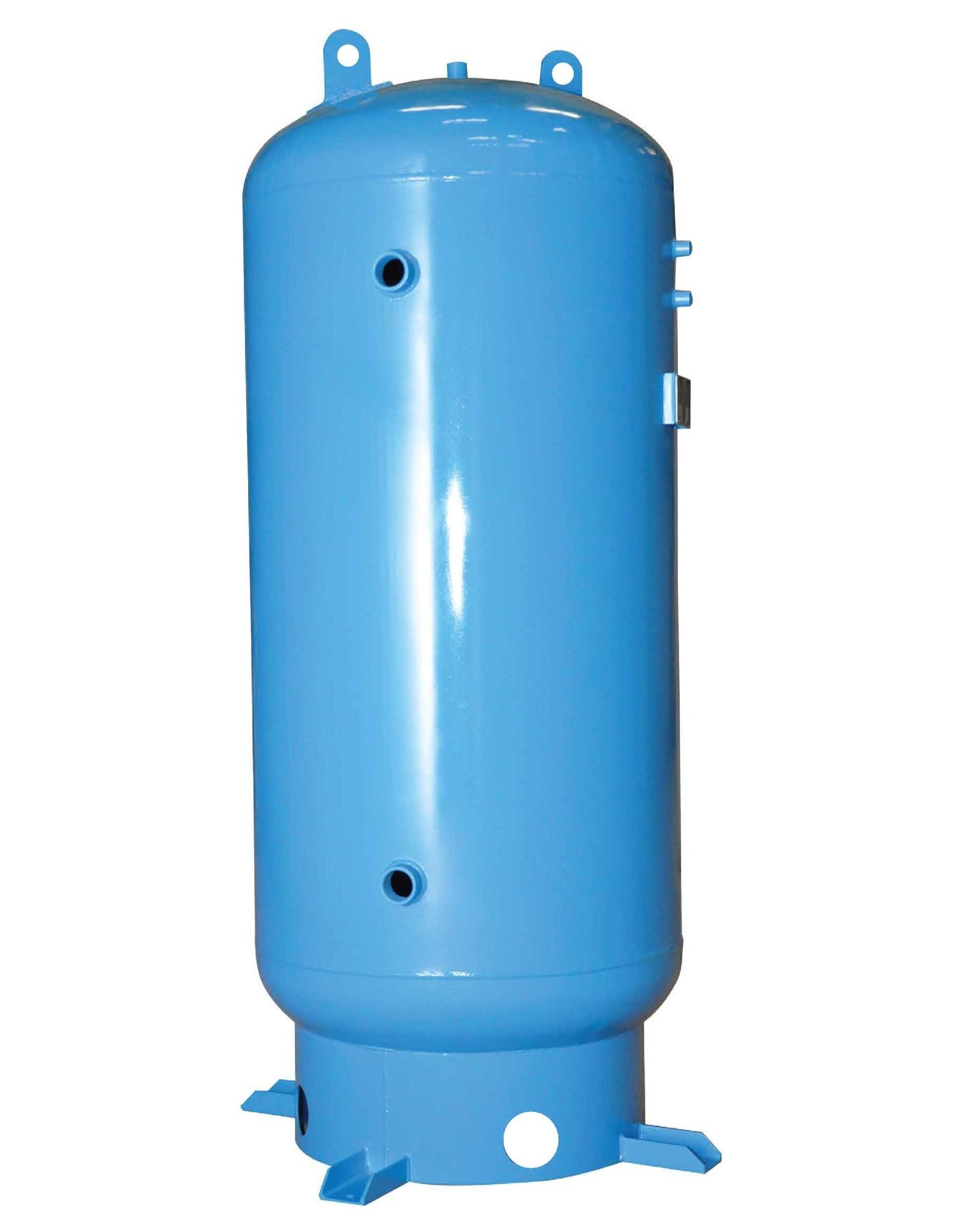

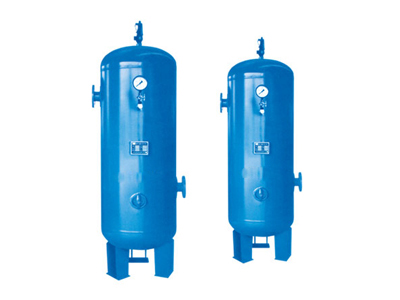

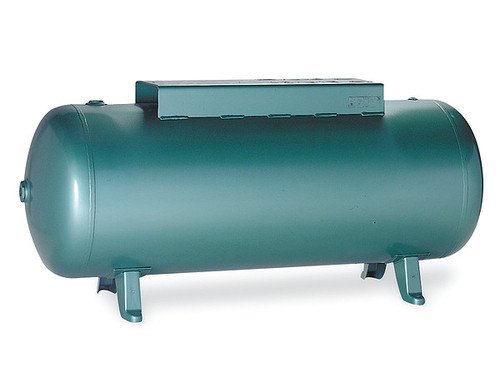

An air receiver, sometimes referred to as a compressed air tank, is an integral part of any compressed air system. The main purpose of this is to act as temporary storage to accommodate the peaks of demand from your system and to optimize the running efficiency of your plant. Air Reciver tanks, available in horizontal & vertical, are designed for extra air storage & made with steel for long-lasting durability.
PRODUCT OVERVIEW
TECHNICAL SPECIFICATION
|
Our Range Of Air Receivers are As Follows: |
||||||
| Air Receiver Volume | Available version | Vertical version | Horizontal Version | |||
| Vertical | Horizontal | Dia(Inch) | Height(Inch) | Dia(Inch) | Lenth(Inch) | |
| 70 | Yes | Yes | 14 | 28 | 14 | 28 |
| 92 | Yes | Yes | 15 | 32 | 15 | 32 |
| 150 | Yes | Yes | 16 | 48 | 16 | 48 |
| 200 | Yes | Yes | 18 | 48 | 18 | 48 |
| 225 | Yes | Yes | 18 | 58 | 18 | 58 |
| 300 | Yes | Yes | 18 | 72 | 18 | 72 |
| 500 | Yes | Yes | 24 | 72 | 24 | 72 |
| 1000 | Yes | Yes | 30 | 84 | – | – |
| 1500 | Yes | Yes | 42 | 69 | – | – |
| 2000 | Yes | Yes | 42 | 90 | – | – |
| 3000 | Yes | Yes | 48 | 102 | – | – |
| 5000 | Yes | Yes | 54 | 132 | – | – |
| 10000 | Yes | Yes | 60 | 216 | – | – |
